MSDroid

MSDroid MSDroid is a complete MegaSquirt tuning app for Android, letting you create dashboards, tune MS1/MS2/MS3 ECUs, and log data with powerful graphical review including GPS route tracking.

MSDroid

MSDroid is an Android tuning app built to work with MegaSquirt and Speeduino engine control units (ECUs). Use it with your phone or tablet to set up custom dashboards, tune the ECU, and capture data logs directly from your device.

The app is made for smooth communication with the vehicle’s ECU, which makes it useful for both experienced builders and everyday enthusiasts. It also adapts to many screen sizes—from smaller phones to larger tablets—by using layouts tuned to the display you’re using, so controls and panels stay easy to read and operate.

To function properly, MSDroid needs read and write access to storage. This access is required to save important files such as project definitions, INI files, MSQ files, and MSL log files. If you deny storage permissions, the app won’t be able to work.

For connecting to your ECU, MSDroid supports either:

• Bluetooth to RS232 (serial), or
• USB to RS232 (serial) when your Android device supports USB Host mode.

If you use MS3 and your device supports USB Host, setup becomes even simpler—typically you only need a USB cable, since MS3 includes an internal FTDI USB interface.

About

A fully integrated MegaSquirt companion app that gives you everything you need on your phone or tablet: custom dashboards, ECU tuning and configuration, and data logging. It also includes advanced log review tools with powerful graphing, including the ability to view a simultaneous map GPS route.

MSDroid supports MS1, MS2, and MS3, including MS/Extra variants.

Important: MSDroid must have read/write storage permission to save project definitions, INI files, MSQ files, and MSL log files. Without it, the app can’t operate correctly.

Features

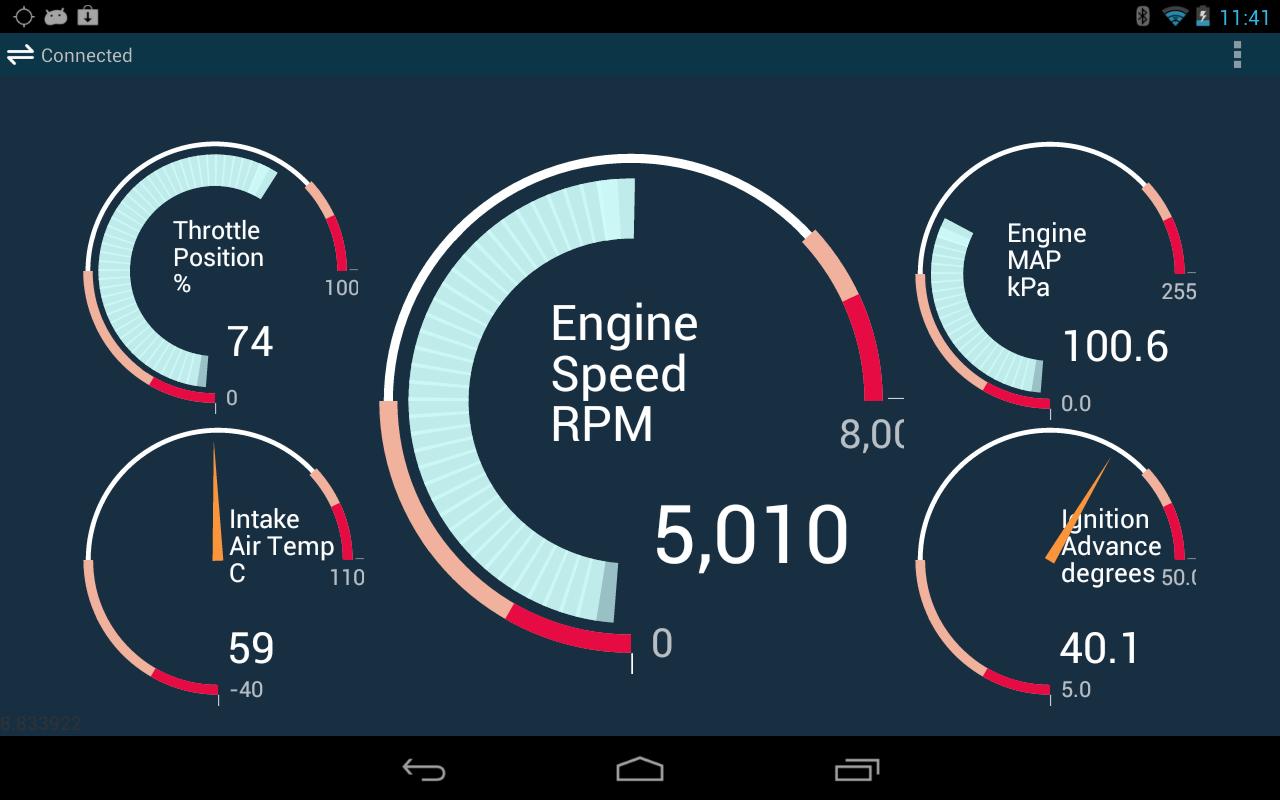

• Customizable multi-page dashboard with a flexible layout you can tailor.

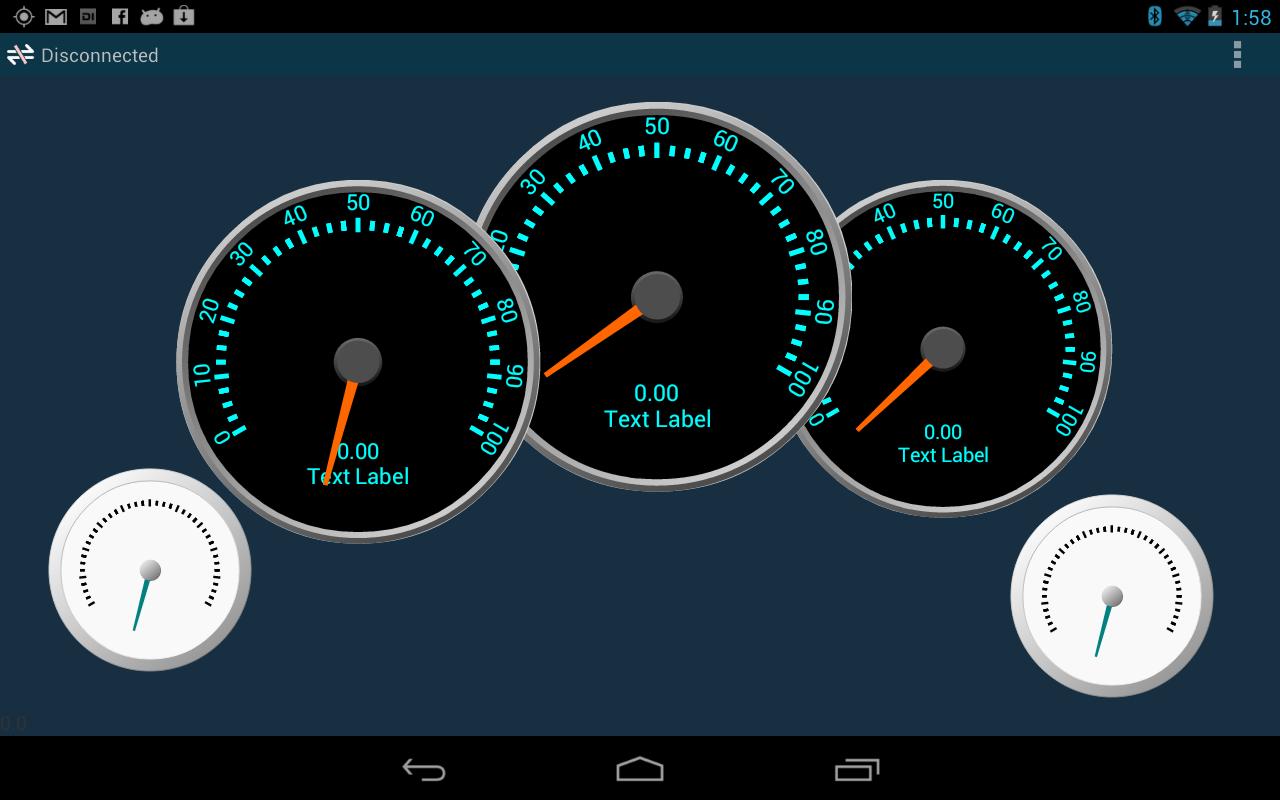

• Widget-based editing: add and arrange elements like gauges using a drag-and-drop style editor.



• Logging for capturing ECU data during runs.

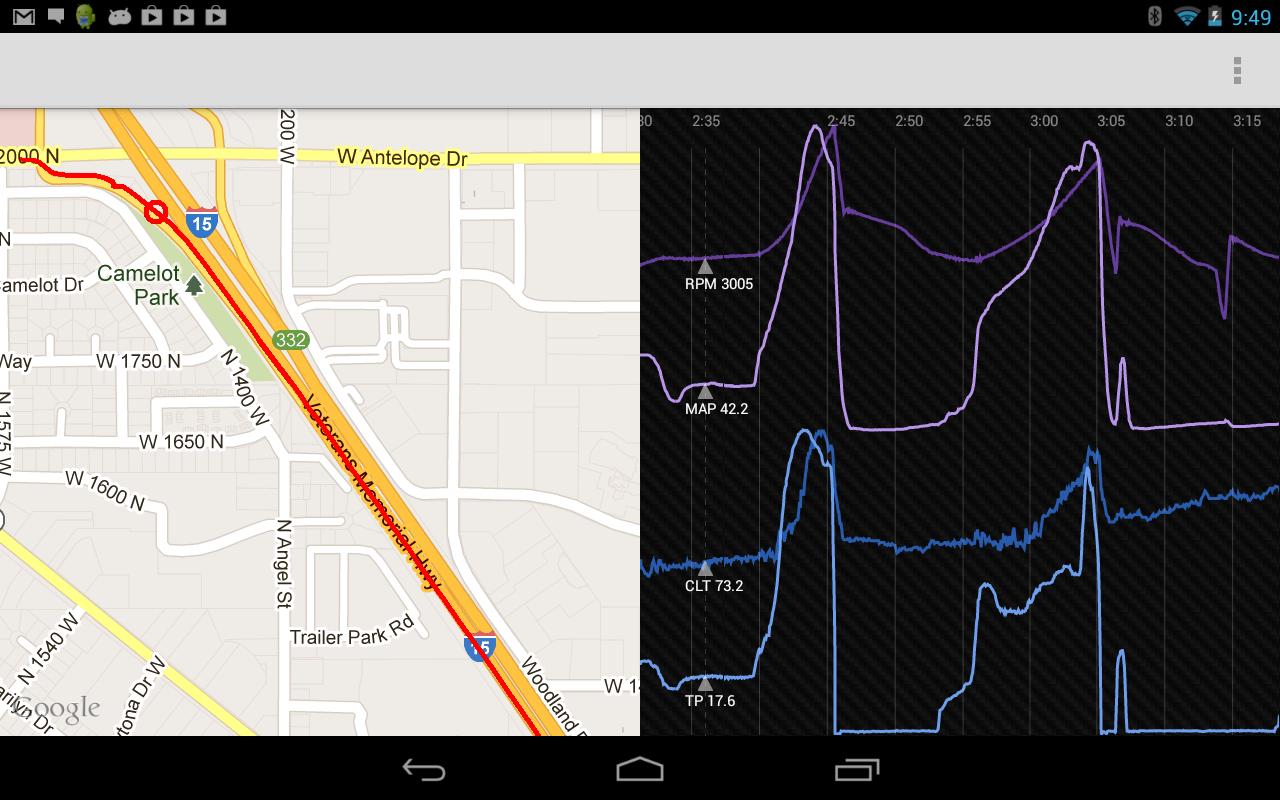

• Integrated datalog viewer that can display logs as standard graphs. It can also optionally show a GPS map to visualize your route. True time axis playback is used, meaning data is represented against real time rather than purely by record count—so timing stays accurate even when sampling intervals vary. Synchronized cursors make it easy to pinpoint exactly where you were on your route or track, matching a specific cursor position to a moment in the datalog.

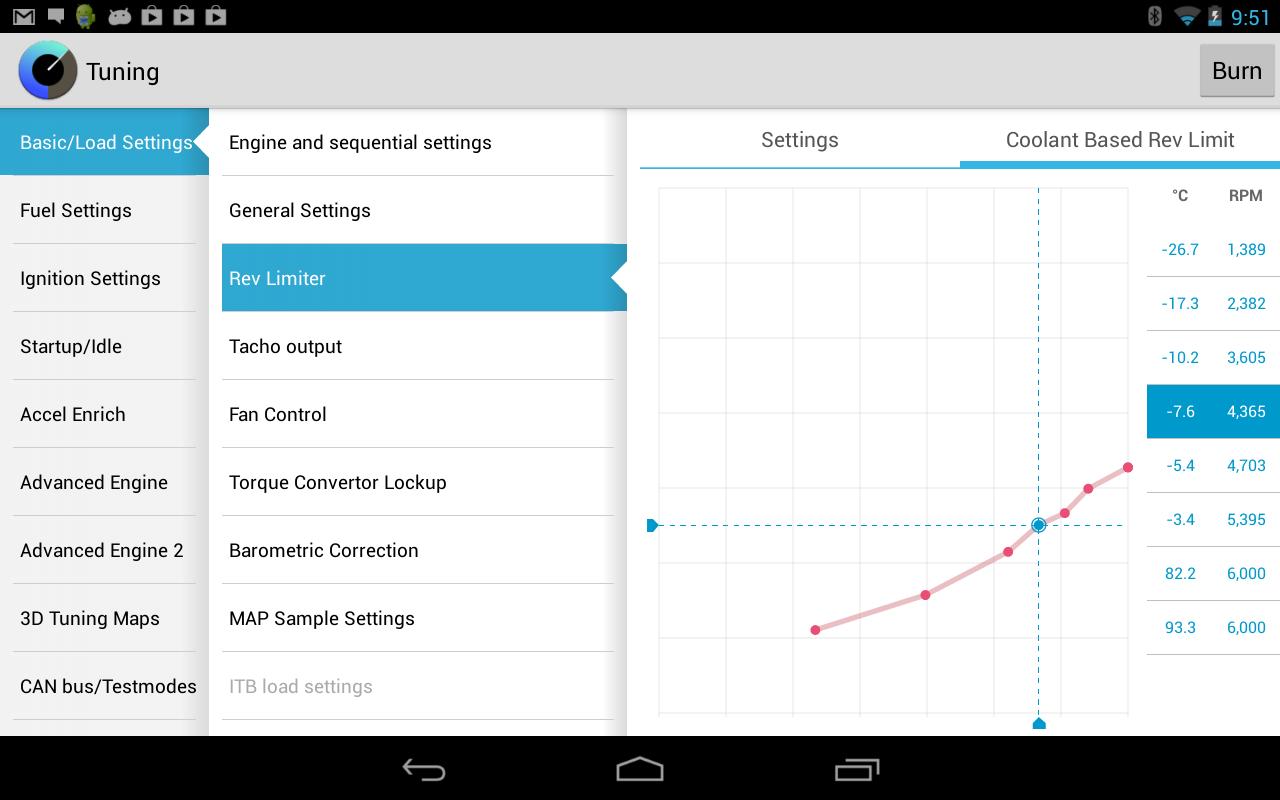

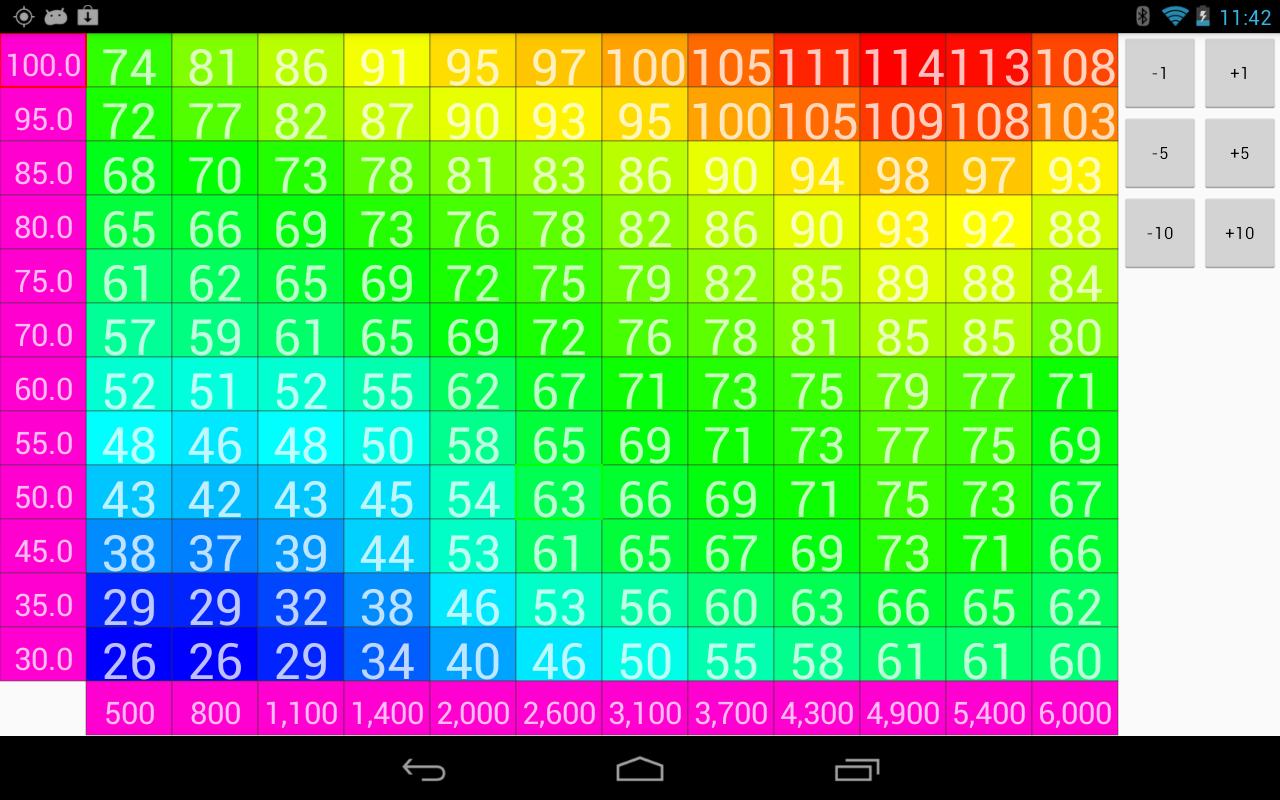

• Support for tuning screens, including table and curve editors. Note: some tuning dialogs may be empty or temporarily unavailable as they are still under development. If a specific dialog you need is missing, you can request it by emailing the developer so it can be prioritized.



• INI-driven tuning: MSDroid is powered by standard Megasquirt .ini files. If your ECU requires an .ini file that isn’t included, you can add it yourself.



• Device-size optimized layouts designed to work well on both phones and tablets.
• Flexible ECU connection options:
  • Use a Bluetooth to RS232 interface, or
  • If your device supports USB Host, use a USB to RS232 interface.
  For MS3 users with USB Host support, a USB cable may be all you need thanks to the MS3 internal FTDI USB interface.

Conclusion

MSDroid is built specifically for MegaSquirt and Speeduino ECUs, and it’s important to note that it does not support OBD2. This focus helps the app deliver a reliable, purpose-built toolkit for these engine management systems.

If you want more precise tuning, MSDroid offers a practical set of tools: custom dashboards, comprehensive logging, and powerful datalog visualization to help you review performance data efficiently. With connection support via Bluetooth or USB, plus streamlined logging and analysis, it’s a strong option for both automotive hobbyists and professional tuners.

Overall, its straightforward interface and feature-rich environment are designed to make tuning feel smooth—so you can spend more time improving your vehicle’s performance.
